GElectrical is a free and opensource electrical system analysis software for LV/MV electrical distribution networks.
GElectrical is a free and opensource electrical system analysis software for LV/MV electrical distribution networks. Following features are currently implemented.

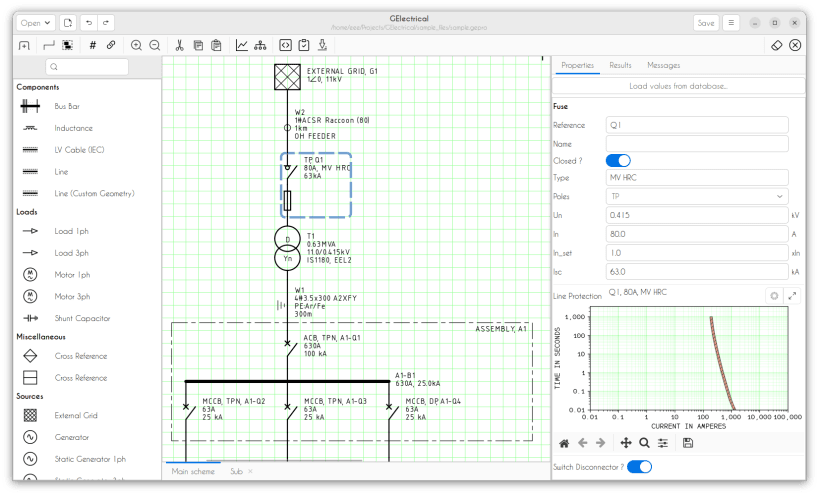

- Schematic capture.
- Pandapower network generation from schematic.

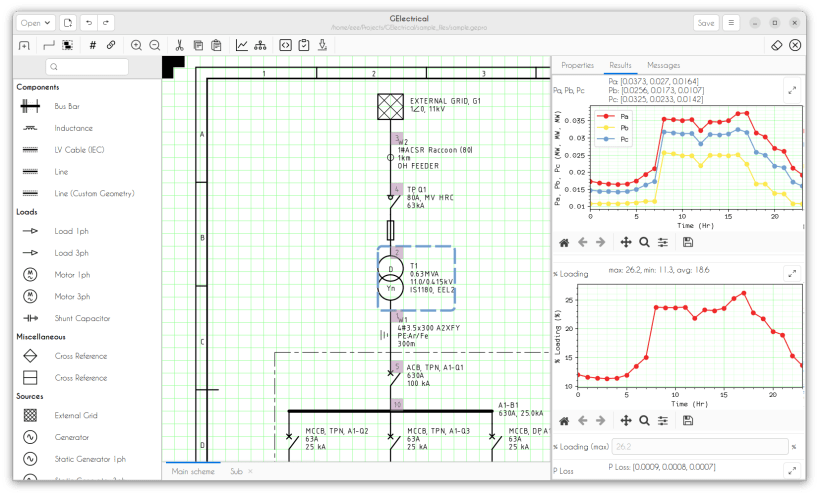

- Power flow time series analysis (Symmetric and Assymetric).
- Power flow with diversity factors (Symmetric and Assymetric).
- Voltage drop analysis.
- Short circuit analysis (Symmetric and SLG).

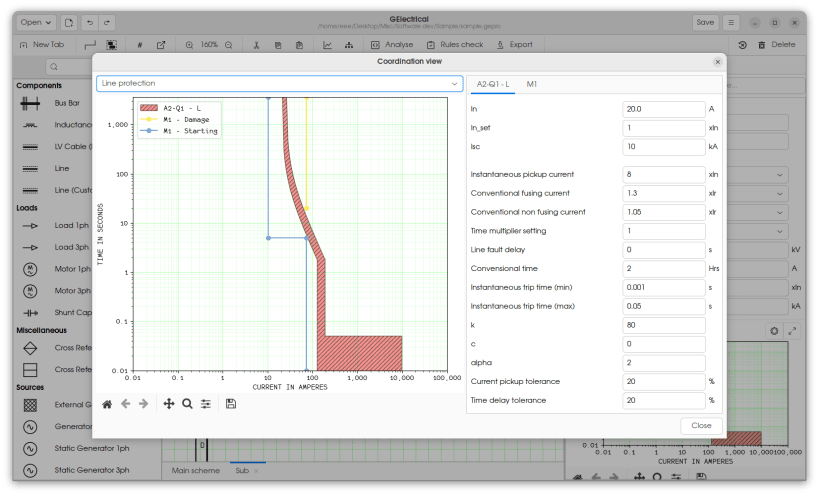

- Coordination analysis for power supply protection devices with support for CB and fuse protection curves; damage curves for transformers, cables and motors.

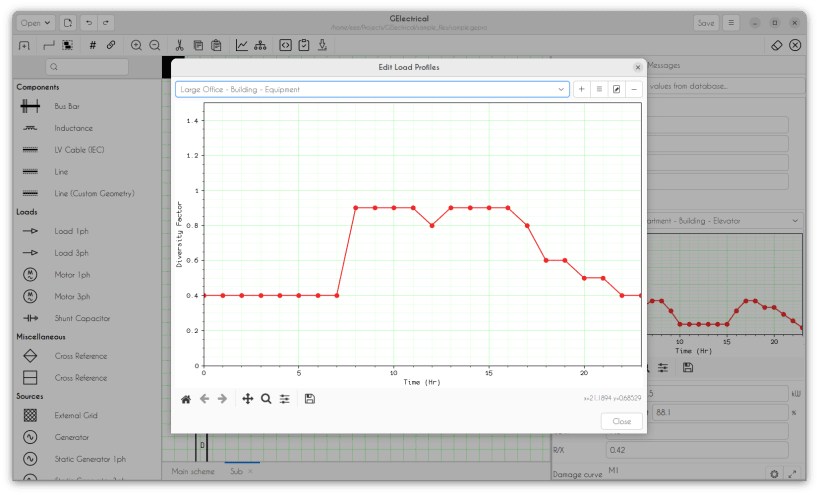

- Support for daily load curves for load elements.
- Support for arriving network parameters for custom geometry OH lines.
- Support for modeling networks with mixed TN-S/ TN-C/ TT/ IT earthing systems.

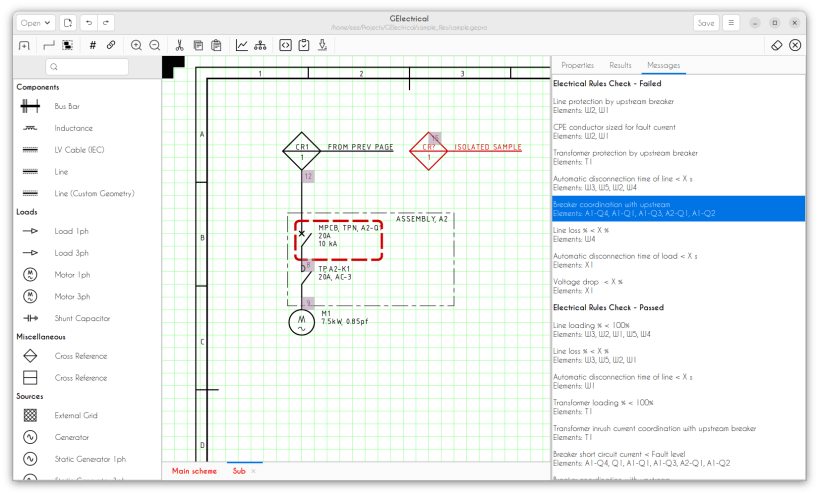

- Electrical rules check for checking conformity with IEC/ local electrical guidelines.
- Print and export of drawings to pdf.
- Generation of analysis reports.
GElectrical uses pandapower as the backend for implementing power flow related functionality like voltage drop and short circuit analysis.
