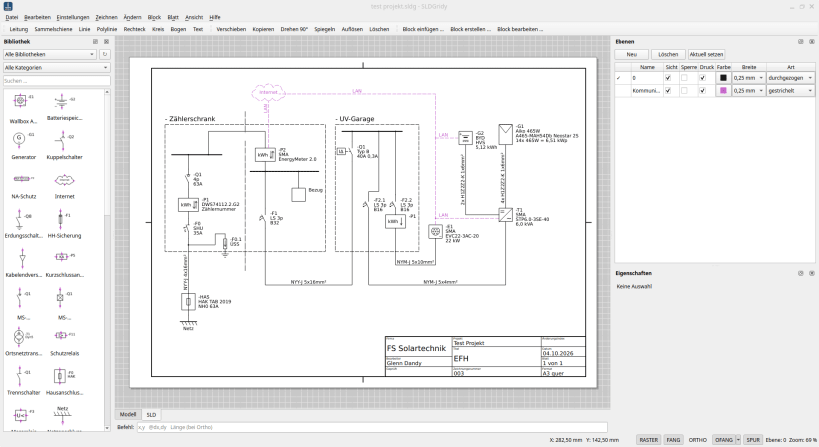

Single-line diagrams for PV systems and transformer stations
SLDGridy draws single-line diagrams (one-line / Einstrich-Übersichtsschaltpläne) for photovoltaic systems, transformer stations and low-voltage distribution.
- Symbol library to DIN EN 60617 plus common PV symbols (PV module, inverter, DC storage, wallbox, selective main switches)
- Orthogonal wires that stay connected when devices are moved, wire labels, bus bars and junction dots
- Blocks with attributes, block editor, own symbol libraries, DXF import
- Sheets with title block and viewports, printing and export to PDF, SVG, PNG
- English and German user interface
SLDGridy zeichnet einpolige Übersichtsschaltpläne für PV-Anlagen, Trafostationen und Niederspannungsverteilungen, auf Deutsch und Englisch.
